Key Features
Small Package
Laydown: 50.8 x 19.05 x 10.4 mm (2.0 x 0.75 x 0.41 in)

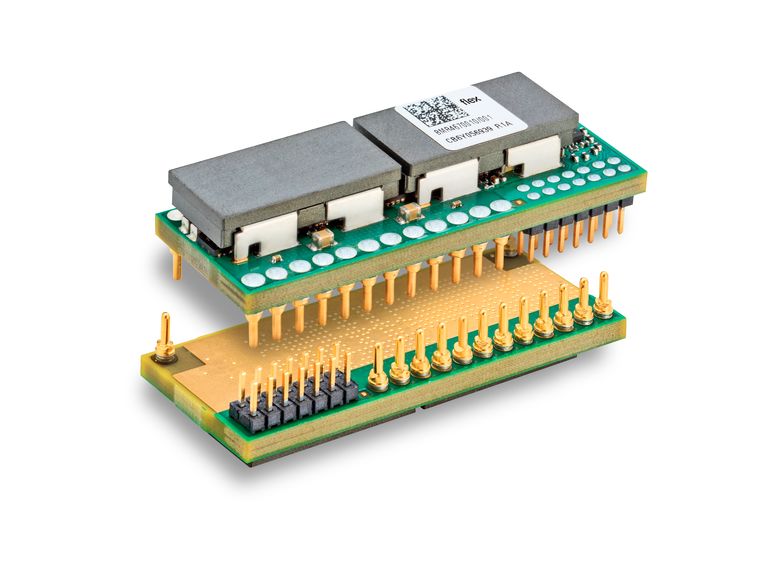

SIP: 50.8 x 8.2 x 19.05 mm (2.0 x 0.32 x 0.75 in)
Control loop with fast load transient response
0.6 V - 1.8 V output voltage range
High maximum output current, 120 A
Current sharing up to 4 modules, 480 A
High efficiency, typ. 93.2% at 12 Vin, 1.8 Vout, half load
Configuration and monitoring via PMBus
Phase synchronization & spreading
Voltage tracking capability
Margining up/down
MTBF 10.49 Mh
General Characteristics
Configuration support via Flex Power Designer
Monotonic soft-start ramp up
Reduced external output decoupling capacitance
Input under-voltage & over-voltage shutdown
Output over current & over voltage protection
Over temperature protection
Remote control & Power Good pins
Differential sense pins
Voltage setting via pin-strap or PMBus
ISO 9001/14001 certified supplier
Highly automated manufacturing ensures quality
