Key Features

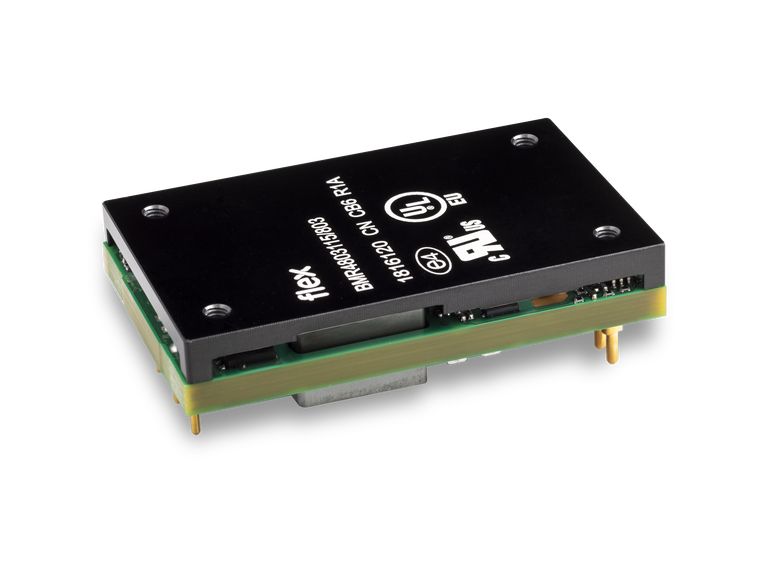

• Industry standard low profile Quarter-brick
58.4 x 36.8 x 12.19 mm (2.30 x 1.45 x 0.48 in)
• High efficiency, typ. 97 % at 53 Vout, half load
• 1500 Vdc input to output isolation
• Baseplate to enhance thermal performance
• Droop load sharing capability
• MTBF over 6 million hours
General Characteristics
• Input voltage range: 40-60 V
• Output voltage: 12 V / 12.1 V
• Max output current: 75 A
• Max output power: 900 W
• Monotonic start-up
• Output over voltage protection
• Over temperature protection
• Output short-circuit protection
• Remote control
• Highly automated manufacturing ensures quality
• ISO 9001/14001 certified supplier
