Key Features
• Small Package

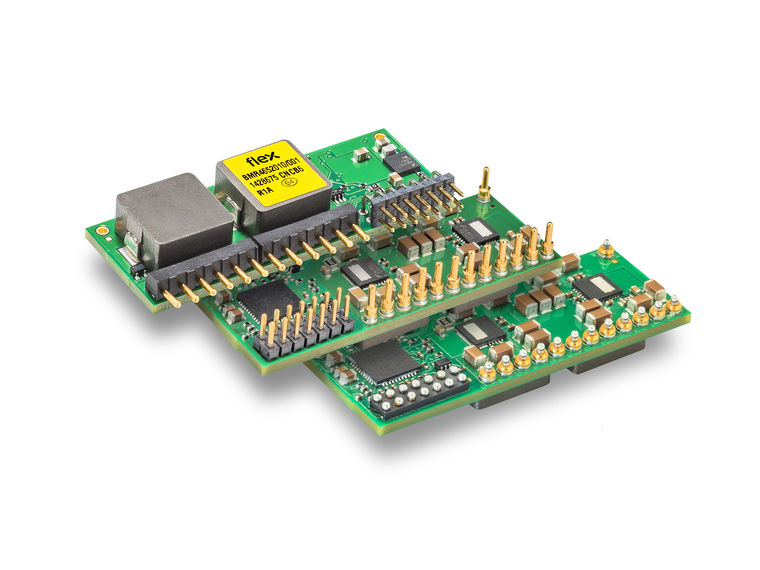

Laydown: 50.8 x 19.05 x 10.0 mm (2.0 x 0.75 x 0.39 in)
SIP: 50.8 x 9.51 x 19.05 mm (2.0 x 0.37 x 0.75 in)
• Control loop with fast load transient response.
• 0.6 V - 1.8 V output voltage range
• High maximum output current, 90 A
• Current sharing up to 4 modules, 360 A
• High efficiency, typ. 94.3% at 12 Vin, 1.8 Vout, half load
• Configuration and monitoring via PMBus
• Phase synchronization & spreading
• Voltage tracking capability
• Margining up/down to +/-10%
• MTBF 14.95 Mh
General Characteristics
• Configuration support via Flex Power Designer
• Monotonic soft-start ramp up
• Reduced external output decoupling capacitance
• Input under-voltage & over-voltage shutdown
• Output short-circuit & over voltage protection
• Over temperature protection
• Remote control & Power Good pins
• Differential sense pins
• Voltage setting via pin-strap or PMBus
• ISO 9001/14001 certified supplier
• Highly automated manufacturing ensures quality
