Key Features

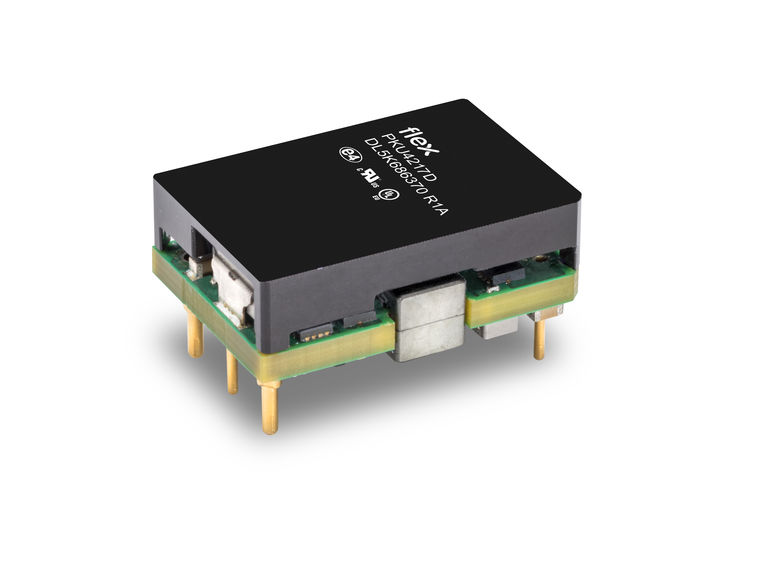

• Industry standard low profile 1/16 brick
33.02 x 22.86 x 11.30 mm (1.3 x 0.9 x 0.44 in)
• High efficiency, typical 94.6% at 48Vin, full load
• 2250 Vdc input to output isolation
• Pre-bias start up
• Optional Baseplate
• Meets safety requirements according to IEC/EN/UL62368-1
• MTBF 13.88 Million hours
General Characteristics
• Monotonic start-up
• Remote control
• Output over voltage protection
• Over temperature protection
• Over current protection
• Highly automated manufacturing ensures quality
• ISO 9001/14001 certified supplier
